SARVAM UCS SME
UNIFIED COMMUNICATION SERVER FOR MODERN ENTERPRISES
Overview

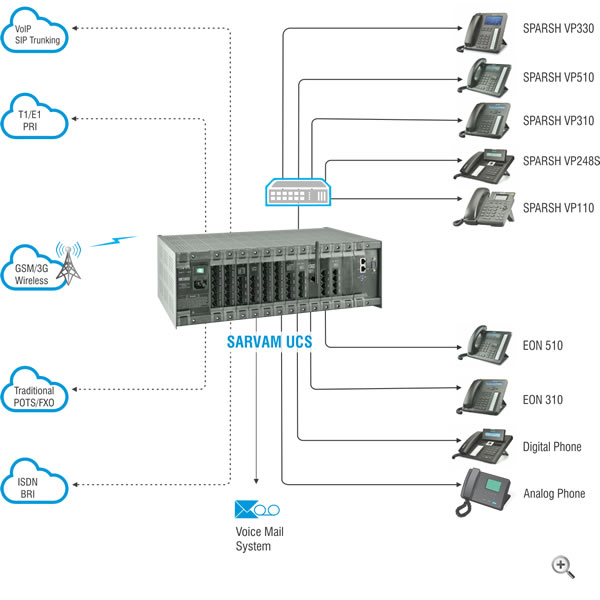

SARVAM UCS SME is future-proof solution offering IP at core with seamless connectivity to all-pervasive legacy and new-generation wireless telecom networks like POTS, ISDN, T1/E1 and GSM/3G. SARVAM UCS SME is a server software which runs on ETERNITY GENX– The next-generation hardware platform. The next-generation platform supports up to 99 VOIP (SIP) trunks, 40 GSM ports, 8 T1/E1 ISDN PRI ports, 32 ISDN BRI ports and 64 analog trunks with up to 999 UC users, 96 digital users and 240 analog users. The users have options of using either Matrix SPARSH desk-phones or Matrix VARTA applications on their smartphones-tablets (Android/iOS) of their choice.
Flexible Subscriber Options
VARTA WIN200
- 1000 DSS & 600 BLF Keys
- Corporate Directory Integration
- Drag and Drop Conference
- Contact Grouping
- Presence Sharing
VARTA ADR100
- Comprehensive Call Management
- One-Touch Access to PBX Features
- Call Hold, Transfer, Conference, Return, Forward, Pick-up
- Corporate Directory Integration
- Video Calling
- Presence Sharing and Instant Messaging
- Voice Mail Access
- Conversation Recording
- Busy Lamp Field (BLF) Keys
VARTA IOS100
- Comprehensive Call Management
- One-Touch Access to PBX Features
- Call Hold, Transfer, Conference, Return, Forward, Pick-up
- Corporate Directory Integration
- Video Calling
- Presence Sharing and Instant Messaging
- Voice Mail Access
- Conversation Recording
- Busy Lamp Field (BLF) Keys
SPARSH VP330E
- 4.3” Color Touch Screen Display
- 12 DSS/BLF Keys
- On-screen BLF Monitoring (18 Contacts)
- 6 Fixed Function Keys
- Presence Indication
- Power over Ethernet (POE)
- Proprietary IP Phone
SPARSH VP510E
- 240*64 Pixels Graphical LCD with Backlit
- 16 DSS/BLF Keys
- 4 Context Sensitive Keys
- *32 Keys Expansion Module (DSS532)
- Power over Ethernet (POE)
- Proprietary IP Phone
SPARSH VP310
- 2 Line LCD with Backlit
- 12 DSS/BLF Keys
- 9 Fixed Function Keys
- Power over Ethernet Option
- Proprietary IP Phone
SPARSH VP248
- 2 Line Adjustable LCD with Backlit
- 16 DSS/BLF Keys
- 12 Touch Sense Features Keys
- Power over Ethernet Option
- Open SIP Phone
SPARSH VP110
- 132*64 Pixel Graphical Display
- Context Sensitive and Fixed Function Keys
- Power over Ethernet
- Open SIP Phone
EON510
- 240*64 Pixels Graphical LCD with Backlit
- 16 DSS Keys
- 4 Context Sensitive Keys
- *32 Keys Expansion Module (DSS532)
EON310
- 2 Line LCD with Backlit
- 12 DSS Keys
- 9 Fixed Function Keys
EON48S
- 2 Line Adjustable LCD with Backlit
- 16 DSS Keys
- 12 Touch Sense Features Keys
- 64 Keys Expansion Module (DSS16x4)

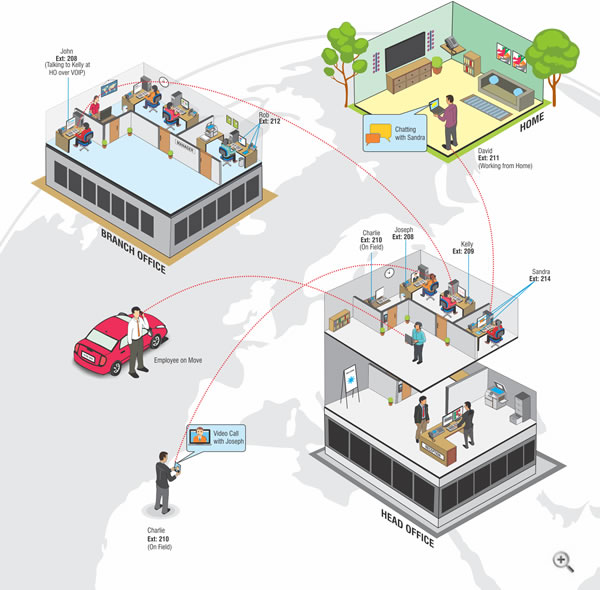

Application
Key Features
Presence
IM / Chat
Unified Messaging
Conferencing
Voice / Video Calling
Collaboration Client – VARTA WIN200
Mobile Client – VARTA ADR/IOS100
App. Integration PMS – CTI – SMS Server
Specifications

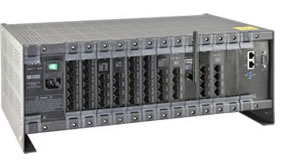

| ETERNITY GENX12S | |
 |
|
| Compatible Server Software | SARVAM UCS SME |
| VOIP (SIP) Trunks | 99 |
| GSM/3G Trunks | Up to 40 |
| CO Ports | Up to 64 |
| VOIP (VOCODER) Channels | Up to 128 |
| ISDN T1/E1 PRI Channels | Up to 240 Ch. (8 Ports) |
| ISDN BRI Channels | Up to 64 Ch. (32 Ports) |
| IP Subscribers | Up to 999 |
| Digital Subscribers | Up to 96 |
| Analog Subscribers | Up to 240 |
| Voice Mail Channels | Up to 64 |
| Power Supply | 100-240 VAC, 47-60Hz 48VDC +20% to -15% |
| Redundancy | No |
| Hot-Swap | No |
| Installation | 19” Rack Mount with 4U Enclosure Wall Mount Table Top |
